Cast Iron TIG Rod

Product Information

A cast iron TIG welding wire used to join and build up all types of cast iron (gray, tempered, spheroidal). Can also weld cast iron to high-alloy steel, copper, and nickel alloys. Very suitable for the automotive casting mold industry.

Technical Data

Tensile Strength
min. 425 N/mm²
Yield Strength
min. 290 N/mm²
Elongation
min. 8% (Lo=5do)
Hardness
200 HB

Welding Information

Current Type
TIG D.C. (-) / MIG D.C. (+)
Available Diameters
TIG 1.6, TIG 2.0, TIG 2.4, MIG 1.2, MIG 1.6 mm

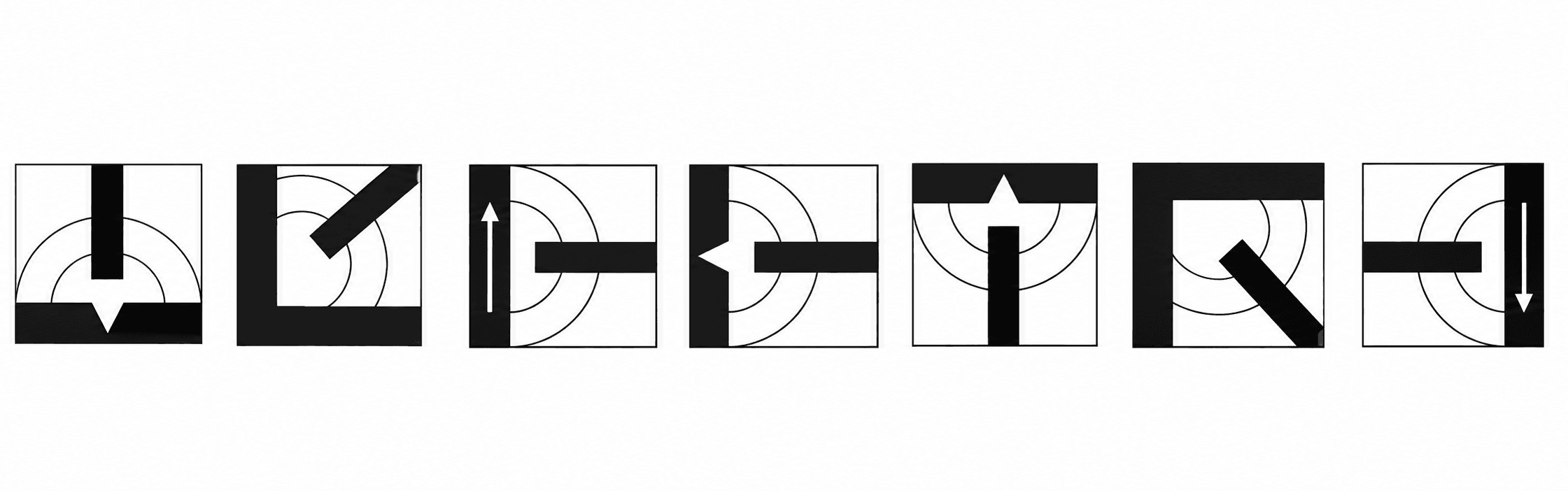

Welding Position
